- 產品型號：62635728
- 頻率：272.8 MHz
- 尺寸：5.0x3.2mm
- 產品介紹：Skyworks有源晶振,544ACAA002065BCGR,Si544測試和測量晶振，美國進口晶振，Skyworks思佳訊晶振，型號：Si544，編碼為：544ACAA002065BCGR，頻率為：272.8MHz，小體...
-

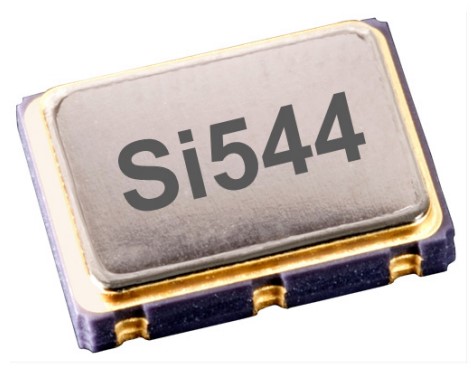

Skyworks有源晶振,544ACAA002065BCGR,Si544測試和測量晶振
.jpg)
.jpg)

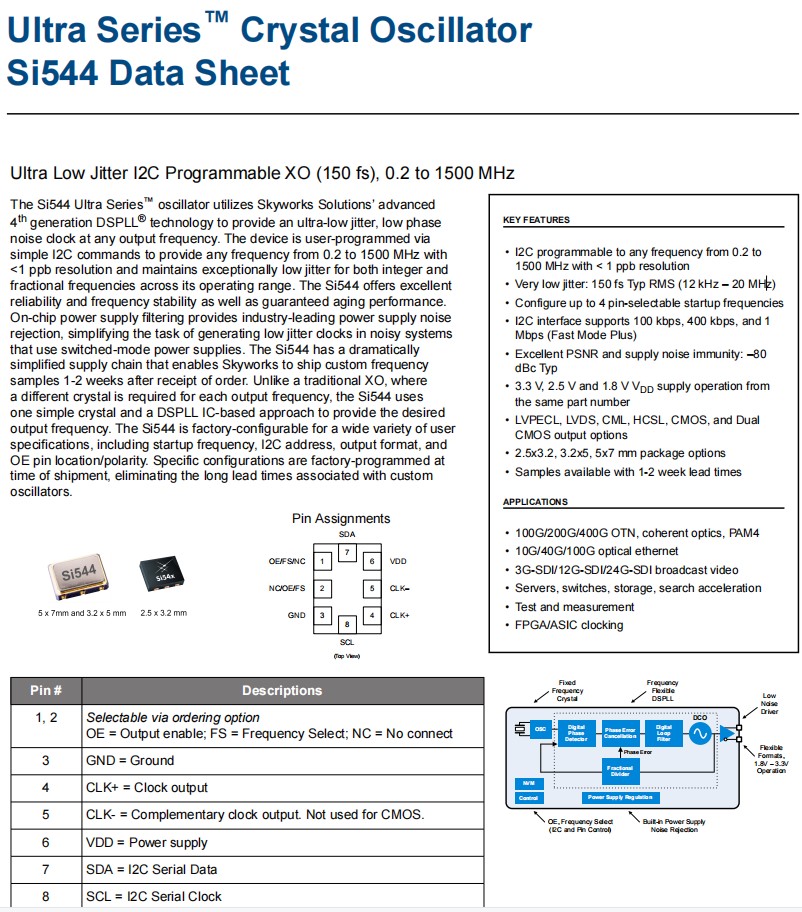

Skyworks有源晶振,544ACAA002065BCGR,Si544測試和測量晶振，美國進口晶振，Skyworks思佳訊晶振，型號：Si544，編碼為：544ACAA002065BCGR，頻率為：272.8 MHz，小體積晶振尺寸：5.0x3.2mm封裝，六腳貼片晶振，LVPECL輸出差分晶體振蕩器，石英晶振，有源晶振，石英晶體振蕩器。具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電源電壓，低耗能等特點。應用于：100G/200G/400G OTN，相干光學，PAM4，10G/40G/100G光學以太網，3G-SDI/12G-SDI/24G-SDI廣播視頻，服務器、交換機、存儲、搜索加速，測試和測量，FPGA/ASIC時鐘等應用。
Si544超系列™振蕩器利用天空解決方案先進的第四代DSPLL®技術，在任何輸出頻率提供超低抖動、低相位噪聲時鐘。該設備通過簡單的I2C命令進行用戶編程，提供從0.2到1500 MHz的任何頻率和<1 ppb分辨率，并在其工作范圍內對整數和分數頻率保持異常低的抖動。Si544差分晶振提供了良好的可靠性和頻率穩定性，以及保證老化性能。片上電源濾波提供了行業領先的電源噪聲抑制，簡化了在使用切換模式電源的有噪聲系統中產生低抖動時鐘的任務。Si544有一個大大簡化的供應鏈，使Skyworks能夠在收到訂單1-2周后運送定制的頻率的樣品。與傳統的XO不同，每個輸出頻率都需要不同的晶體，Si544使用一個簡單的晶體和一種基于DSPLL ic的方法來提供所需的輸出頻率。Si544可在工廠上配置各種用戶規格，包括啟動頻率、I2C地址、輸出格式和OE引腳位置/極性。特定的配置是在裝運時由工廠編程的，消除了與自定義振蕩器相關的長交貨時間。
.jpg)
Skyworks有源晶振,544ACAA002065BCGR,Si544測試和測量晶振,參數表
| Parameter | Symbol | Test Condition/Comment | Min | Typ | Max | Unit | |||||||||||||||||||||||||||||||||||||||||
| Temperature Range | TA | –40 | 85 | ºC | |||||||||||||||||||||||||||||||||||||||||||
| Frequency Range | FCLK | LVPECL, LVDS, CML | 272.8 | MHz | |||||||||||||||||||||||||||||||||||||||||||
| HCSL | 0.2 | — | 400 | MHz | |||||||||||||||||||||||||||||||||||||||||||
| CMOS, Dual CMOS | 0.2 | 250 | MHz | ||||||||||||||||||||||||||||||||||||||||||||
| Supply Voltage | V DD | 3.3 V | 3.135 | 3.3 | 3.465 | V | |||||||||||||||||||||||||||||||||||||||||
| 2.5 V | 2.375 | 2.5 | 2.625 | V | |||||||||||||||||||||||||||||||||||||||||||
| 1.8 V | 1.71 | 1.8 | 1.89 | V | |||||||||||||||||||||||||||||||||||||||||||
| Supply Current | IDD | LVPECL (output enabled) | 100 | 145 | mA | ||||||||||||||||||||||||||||||||||||||||||
| LVDS/CML (output enabled) | — | 75 | 111 | mA | |||||||||||||||||||||||||||||||||||||||||||
| HCSL (output enabled) | 80 | 125 | mA | ||||||||||||||||||||||||||||||||||||||||||||
| HCSL-Fast (output enabled) | — | 88 | 137 | mA | |||||||||||||||||||||||||||||||||||||||||||
| CMOS (output enabled) | 74 | 108 | mA | ||||||||||||||||||||||||||||||||||||||||||||
| Dual CMOS (output enabled) | — | 80 | 125 | mA | |||||||||||||||||||||||||||||||||||||||||||
| Tristate Hi-Z (output disabled) | 64 | 100 | mA | ||||||||||||||||||||||||||||||||||||||||||||
| Temperature Stability | Frequency stability Grade A | –20 | — | 20 | ppm | ||||||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade B | –10 | 10 | ppm | ||||||||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade C | –7 | — | 7 | ppm | |||||||||||||||||||||||||||||||||||||||||||
| Total Stability1 | F STAB | Frequency stability Grade A | –50 | 50 | ppm | ||||||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade B | –25 | — | 25 | ppm | |||||||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade C | –20 | 20 | ppm | ||||||||||||||||||||||||||||||||||||||||||||
|
Rise/Fall Time (20% to 80% VPP) |
TR/T F | LVPECL/LVDS/CML | — | — | 350 | ps | |||||||||||||||||||||||||||||||||||||||||
|
CMOS / Dual CMOS (CL = 5 pF) |
— | 0.5 | 1.5 | ns | |||||||||||||||||||||||||||||||||||||||||||
| HCSL, FCLK>50 MHz | — | — | 550 | ps | |||||||||||||||||||||||||||||||||||||||||||
| HCSL-Fast, FCLK>50 MHz | — | — | 275 | ps | |||||||||||||||||||||||||||||||||||||||||||
| Duty Cycle | DC | All formats | 45 | — | 55 | % | |||||||||||||||||||||||||||||||||||||||||
|
Output Enable (OE), Frequency Select (FS0, FS1)2 |
VIH | 0.7 × V DD | V | ||||||||||||||||||||||||||||||||||||||||||||
| VIL | — | — | 0.3 × V DD | V | |||||||||||||||||||||||||||||||||||||||||||
| TD | Output Disable Time, FCLK>10 MHz | — | — | 3 | µs | ||||||||||||||||||||||||||||||||||||||||||
| TE | Output Enable Time, FCLK>10 MHz | — | — | 20 | µs | ||||||||||||||||||||||||||||||||||||||||||
| T FS | Settling Time after FS Change | 10 | ms | ||||||||||||||||||||||||||||||||||||||||||||
| Powerup Time | tOSC |
Time from 0.9 × V DD until output fre- quency (FCLK) within spec |
— | — | 10 | ms | |||||||||||||||||||||||||||||||||||||||||
.jpg)

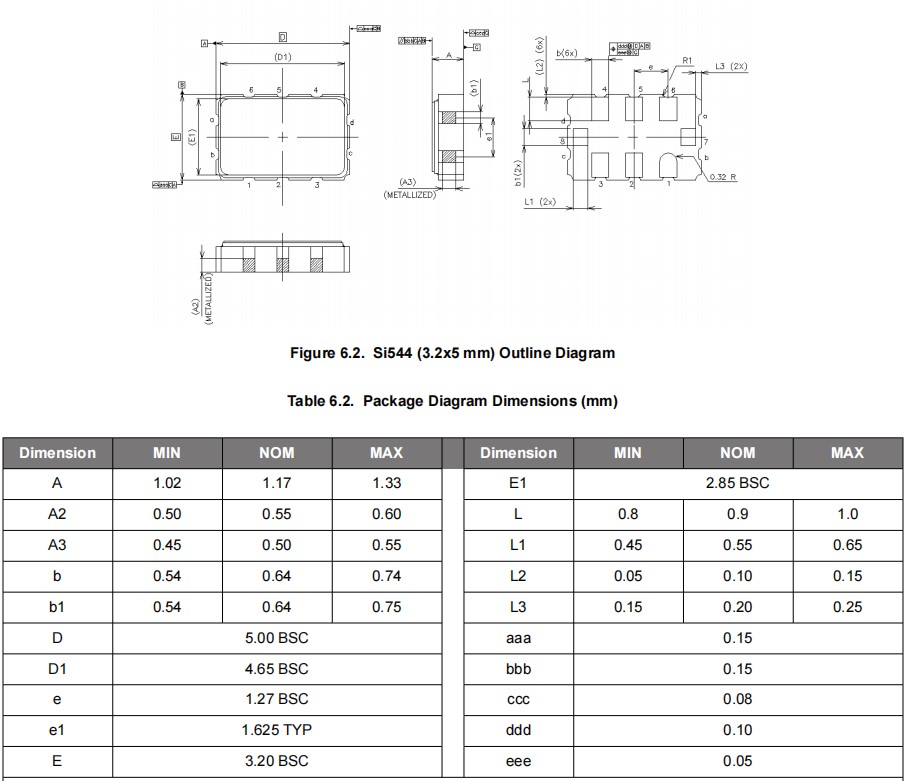

Skyworks有源晶振,544ACAA002065BCGR,Si544測試和測量晶振,尺寸圖
Skyworks有源晶振,544ACAA002065BCGR,Si544測試和測量晶振
產品特點：
I2C可編程至0.2至1500 MHz的任何頻率，分辨率<1 ppb
極低抖動：150 fs典型RMS（12 kHz–20 MHz）
最多配置4針可選啟動頻率
I2C接口支持100 kbps、400 kbps和1 Mbps（Fast Mode Plus）
出色的PSNR和電源抗擾度：–80dBc Typ
相同零件號的3.3 V、2.5 V和1.8 V VDD電源操作
LVPECL、LVDS、CML、HCSL、CMOS和雙CMOS輸出選項
2.5x3.2、3.2x5、5x7 mm封裝選項石英晶振
樣品可用，交付周期為1-2周
| 編碼 | 進口晶振 | 系列 | 頻率 | 輸出 | 電壓 |
| 544AAAA000118ACG | Skyworks晶振 | Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AADA000163ACG | Skyworks晶振 | Si544 | 20 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000798ACG | Skyworks晶振 | Si544 | 1 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000126ACG | Skyworks晶振 | Si544 | 200 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAA001427BCGR | Skyworks晶振 | Si544 | 157 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000121BCG | Skyworks晶振 | Si544 | 100 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AADA000163ACGR | Skyworks晶振 | Si544 | 20 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAC000112BCGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000112BCGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000126ACGR | Skyworks晶振 | Si544 | 200 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAC000112BCG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ABAC001975BCGR | Skyworks晶振 | Si544 | 40.8 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAA000131BCGR | Skyworks晶振 | Si544 | 120 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000112BCG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000798ACGR | Skyworks晶振 | Si544 | 1 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000110BCG | Skyworks晶振 | Si544 | 74.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AADC000112BCG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ABAA000112BCG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000118BCG | 有源晶振 | Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000118ACGR | Skyworks晶振 | Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000118BCGR | Skyworks晶振 | Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAA002065BCGR | Skyworks晶振 | Si544 | 272.8 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AADC000112BCGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAA002065BCG | Skyworks晶振 | Si544 | 272.8 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAA000112BCG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAA000131BCG | Skyworks晶振 | Si544 | 120 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000110BCGR | Skyworks晶振 | Si544 | 74.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ABAA000112BCGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAA000112BCGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ABAA001982BCG | Skyworks晶振 | Si544 | 133.3125 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ABAC001975BCG | Skyworks晶振 | Si544 | 40.8 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ABAA001982BCGR | Skyworks晶振 | Si544 | 133.3125 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000121BCGR | Skyworks晶振 | Si544 | 100 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAA001427BCG | Skyworks晶振 | Si544 | 157 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000110BBGR | Skyworks晶振 | Si544 | 74.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000112BBGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000121BBGR | Skyworks晶振 | Si544 | 100 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000126ABGR | Skyworks晶振 | Si544 | 200 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000798ABGR | Skyworks晶振 | Si544 | 1 MHz | LVPECL | 2.5V, 3.3V |
| 544AADA000163ABGR | Skyworks晶振 | Si544 | 20 MHz | LVPECL | 2.5V, 3.3V |
| 544AADC000112BBGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000110BBG | Skyworks晶振 | Si544 | 74.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000112BBG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000121BBG | Skyworks晶振 | Si544 | 100 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000126ABG | Skyworks晶振 | Si544 | 200 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000798ABG | Skyworks晶振 | Si544 | 1 MHz | LVPECL | 2.5V, 3.3V |
| 544AADA000163ABG | Skyworks晶振 | Si544 | 20 MHz | LVPECL | 2.5V, 3.3V |
| 544AADC000112BBG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544AACC000110ACGR | Skyworks晶振 | Si544 | 74.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AACC000110ACG | Skyworks晶振 | Si544 | 74.25 MHz | LVPECL | 2.5V, 3.3V |
| 544ABAC001975BBGR | Skyworks晶振 | Si544 | 40.8 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAC000112BBGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ABAC001975BBG | Skyworks晶振 | Si544 | 40.8 MHz | LVPECL | 2.5V, 3.3V |
| 544ACCC000597ACGR | Skyworks晶振 | Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544ACCC000115ACGR | Skyworks晶振 | Si544 | 125 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA000112BBGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA000131BBGR | Skyworks晶振 | Si544 | 120 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA001427BBGR | Skyworks晶振 | Si544 | 157 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA002065BBGR | Skyworks晶振 | Si544 | 272.8 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA000112CCGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA000112BBG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA000131BBG | Skyworks晶振 | Si544 | 120 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA001427BBG | Skyworks晶振 | Si544 | 157 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA002065BBG | Skyworks晶振 | Si544 | 272.8 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA000112CCG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ACCC000597ACG | Skyworks晶振 | Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544ACCC000115ACG | Skyworks晶振 | Si544 | 125 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAC000112BBG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ABAA000112BBGR | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ABAA001982BBGR | Skyworks晶振 | Si544 | 133.3125 MHz | LVPECL | 2.5V, 3.3V |
| 544ABAA000112BBG | Skyworks晶振 | Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ABAA001982BBG | Skyworks晶振 | Si544 | 133.3125 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000118ABGR | Skyworks晶振 | Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000118BBGR | Skyworks晶振 | Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAHA001950ABGR | Skyworks晶振 | Si544 | - | LVPECL | 2.5V, 3.3V |
| 544AAAA000118ABG | Skyworks晶振 | Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000118BBG | Skyworks晶振 | Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAHA001950ABG | Skyworks晶振 | Si544 | - | LVPECL | 2.5V, 3.3V |
