晶體領域領先創新的Cardinal卡迪納爾，憑著自身非凡的魅力，吸引了無數用戶前來采購與合作，在制作晶體產品上面有著專屬自身的獨特見解，隨著幾十年來的積累，日漸成熟的創新解決方案，為用戶解決在晶體領域所遇到的問題，以及開發許多品質過硬的石英晶振產品，以此贏得廣大用戶的歡心，并建立親密的合作關系，持續不斷成長的卡迪納爾將為社會創造巨大的價值.

Cardinal投資于石英晶體技術，為那些需要頻率控制設備的用戶提供最新的大批量產品。Cardinal成立了合資企業和子公司，以提供最高頻率、最高質量的零件。Cardinal Components Inc，Inc .致力于通過提高產量、降低成本、提高客戶滿意度以及滿足員工對培訓、安全和士氣的期望來持續提高質量。

進口晶振原廠編碼	Manufacturer廠家	Description 參數	Series型號	Frequency	Frequency Stability頻率穩定度	ESR (Equivalent Series Resistance)電阻	Operating Temperature    工作溫度
CSM1Z-A5B2C3-40-18.432D18	Cardinal石英晶體	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-40-18.432D18	Cardinal石英晶體	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-40-18.432D18	Cardinal石英晶體	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A1B2C3-40-24-0D12	Cardinal石英晶體	CRYSTAL 24.0000MHZ 12PF SMD	CSM1	24MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CSM1Z-A1B2C3-40-24-0D12	Cardinal石英晶體	CRYSTAL 24.0000MHZ 12PF SMD	CSM1	24MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CSM1Z-A1B2C3-40-24-0D12	Cardinal石英晶體	CRYSTAL 24.0000MHZ 12PF SMD	CSM1	24MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CSM1Z-A0B2C3-150-4.0D18	Cardinal石英晶體	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-150-4.0D18	Cardinal石英晶體	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-150-4.0D18	Cardinal石英晶體	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-10°C ~ 60°C
CSM1Z-A5B2C3-150-4.0D20	Cardinal石英晶體	CRYSTAL 4.0000MHZ 20PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-150-4.0D20	Cardinal石英晶體	CRYSTAL 4.0000MHZ 20PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-150-4.0D20	Cardinal石英晶體	CRYSTAL 4.0000MHZ 20PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-200-4.0D18	Cardinal石英晶體	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	200 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-200-4.0D18	Cardinal石英晶體	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	200 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-200-4.0D18	Cardinal石英晶體	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	200 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-50-19.6608D18	Cardinal石英晶體	CRYSTAL 19.6608MHZ 18PF SMD	CSM1	19.6608MHz	±50ppm	50 Ohm	-20°C ~ 70°C
CSM4Z-A2B3C3-40-14.7456D18	Cardinal石英晶體	CRYSTAL 14.7456MHZ 18PF SMD	CSM4	14.7456MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-14.7456D18	Cardinal石英晶體	CRYSTAL 14.7456MHZ 18PF SMD	CSM4	14.7456MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-14.7456D18	Cardinal石英晶體	CRYSTAL 14.7456MHZ 18PF SMD	CSM4	14.7456MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM1Z-A5B2C5-40-16.0D18	Cardinal石英晶體	CRYSTAL 16.0000MHZ 18PF SMD	CSM1	16MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-16.0D18	Cardinal石英晶體	CRYSTAL 16.0000MHZ 18PF SMD	CSM1	16MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-16.0D18	Cardinal石英晶體	CRYSTAL 16.0000MHZ 18PF SMD	CSM1	16MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-25.0D18-F	Cardinal石英晶體	CRYSTAL 25.0000MHZ 18PF SMD	CSM1	25MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-25.0D18-F	Cardinal石英晶體	CRYSTAL 25.0000MHZ 18PF SMD	CSM1	25MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-25.0D18-F	Cardinal石英晶體	CRYSTAL 25.0000MHZ 18PF SMD	CSM1	25MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-18.432D18	Cardinal石英晶體	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-18.432D18	Cardinal石英晶體	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-18.432D18	Cardinal石英晶體	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-12.0D18	Cardinal石英晶體	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-12.0D18	Cardinal石英晶體	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-12.0D18	Cardinal石英晶體	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A2B1C2-80-7.3728D33	Cardinal石英晶體	CRYSTAL 7.3728MHZ 33PF SMD	CSM1	7.3728MHz	±100ppm	80 Ohm	-40°C ~ 85°C
CPFBZ-A2C5-32.768D6	Cardinal石英晶體	CRYSTAL 32.7680KHZ 6PF SMD	CPFB	32.768kHz	-	50 kOhm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal石英晶體	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal石英晶體	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	40 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal石英晶體	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	40 Ohm	-40°C ~ 85°C
CX5Z-A5B2C5-40-12.0D18	Cardinal石英晶體	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal石英晶體	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal石英晶體	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal石英晶體	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-25D18	Cardinal石英晶體	CRYSTAL 25.0000MHZ 18PF SMD	CX5	25MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX635BZ-A1B2C3-80-14.31818D20	Cardinal石英晶體	CRYSTAL 14.31818MHZ 20PF SMD	CX635B	14.31818MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CX532Z-A5B3C5-70-18.432D18	Cardinal石英晶體	CRYSTAL 18.4320MHZ 18PF SMD	CX532	18.432MHz	±30ppm	70 Ohm	-20°C ~ 70°C
C49X-A3B1C1-40-8.0D16	Cardinal石英晶體	CRYSTAL 8.0000MHZ 16PF T/H	C49	8MHz	±100ppm	40 Ohm	-55°C ~ 125°C
CSM1Z-A0B2C3-100-40.0D18	Cardinal石英晶體	CRYSTAL 40.0000MHZ 18PF SMD	CSM1	40MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-40.0D18	Cardinal石英晶體	CRYSTAL 40.0000MHZ 18PF SMD	CSM1	40MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-40.0D18	Cardinal石英晶體	CRYSTAL 40.0000MHZ 18PF SMD	CSM1	40MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-49.152D18	Cardinal石英晶體	CRYSTAL 49.1520MHZ 18PF SMD	CSM1	49.152MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-49.152D18	Cardinal石英晶體	CRYSTAL 49.1520MHZ 18PF SMD	CSM1	49.152MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-49.152D18	Cardinal石英晶體	CRYSTAL 49.1520MHZ 18PF SMD	CSM1	49.152MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A2B4C7-60-24.0D18-F	Cardinal石英晶體	CRYSTAL 24.0000MHZ 18PF SMD	CSM1	24MHz	±10ppm	60 Ohm	-40°C ~ 85°C
CSM1Z-A2B4C7-60-24.0D18-F	Cardinal石英晶體	CRYSTAL 24.0000MHZ 18PF SMD	CSM1	24MHz	±10ppm	60 Ohm	-40°C ~ 85°C
CSM1Z-A2B4C7-60-24.0D18-F	Cardinal石英晶體	CRYSTAL 24.0000MHZ 18PF SMD	CSM1	24MHz	±10ppm	60 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-25.0D18	Cardinal石英晶體	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-25.0D18	Cardinal石英晶體	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CSM1Z-ARB2C5-60-8.0D18	Cardinal石英晶體	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	60 Ohm	-40°C ~ 125°C
CSM1Z-ARB2C5-60-8.0D18	Cardinal石英晶體	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	60 Ohm	-40°C ~ 125°C
CSM1Z-ARB2C5-60-8.0D18	Cardinal石英晶體	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	60 Ohm	-40°C ~ 125°C
CSM1Z-ARB3C3-50-14.7456D18	Cardinal石英晶體	CRYSTAL 14.7456MHZ 18PF SMD	CSM1	14.7456MHz	±30ppm	50 Ohm	-40°C ~ 125°C
CSM1Z-ARB3C3-50-14.7456D18	Cardinal石英晶體	CRYSTAL 14.7456MHZ 18PF SMD	CSM1	14.7456MHz	±30ppm	50 Ohm	-40°C ~ 125°C
CSM1Z-ARB3C3-50-14.7456D18	Cardinal石英晶體	CRYSTAL 14.7456MHZ 18PF SMD	CSM1	14.7456MHz	±30ppm	50 Ohm	-40°C ~ 125°C
CSM4Z-A2B3C3-40-33.0D18	Cardinal石英晶體	CRYSTAL 33.0000MHZ 18PF SMD	CSM4	33MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-33.0D18	Cardinal石英晶體	CRYSTAL 33.0000MHZ 18PF SMD	CSM4	33MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-33.0D18	Cardinal石英晶體	CRYSTAL 33.0000MHZ 18PF SMD	CSM4	33MHz	±30ppm	40 Ohm	-40°C ~ 85°C

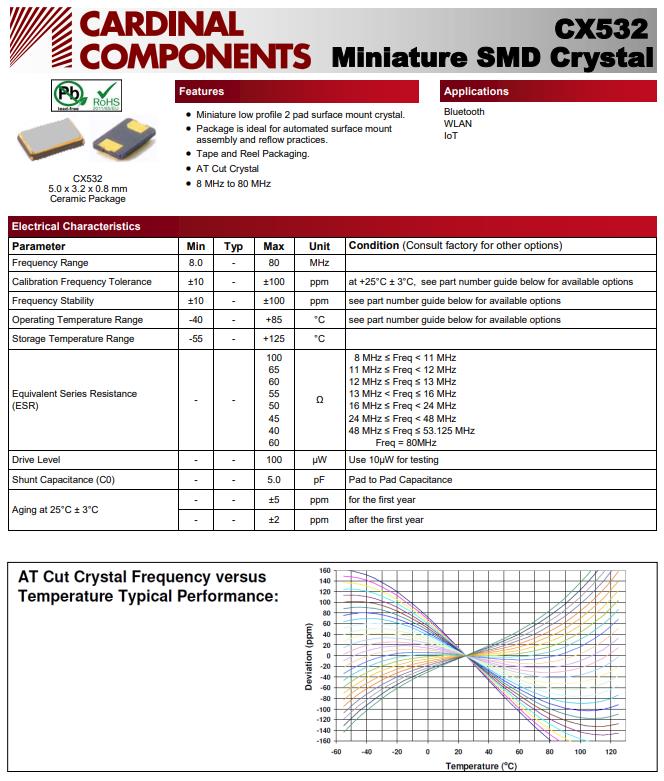

處于發展正旺盛的卡迪納爾公司，很快洞察到新的需求，針對性推出了CX532Z-A1B3C2-45-40.0D18，型號CX532，石英晶體諧振器，貼片晶振，尺寸為5032mm，頻率為40MHZ，微型低輪廓2墊表面安裝晶體。包裝是理想的自動表面安裝，裝配和回流實踐。磁帶和卷軸包裝。AT切割水晶，8mhz ~ 80mhz，應用：藍牙,無線局域網,物聯網.
