At Diodes Incorporated, respect for human rights is ingrained in our core values and in how we conduct business, interact with stakeholders (including customers, employees, and suppliers), and engage with the communities in which we operate. We are cognizant of the potential human rights issues and labor risks that may occur within the semiconductor supply chain, especially for the vulnerable populations in our society, and are committed to protecting and preserving these human rights and promoting human rights awareness.

在Diodes Incorporated，尊重人權根植于我們的核心價值觀以及我們如何開展業務，與利益相關者(包括客戶、員工和供應商)互動，與我們所在的社區建立聯系。我們認識到這種潛力半導體或晶體振蕩器供應鏈中可能出現的人權問題和勞工風險，特別是我們社會中的弱勢群體，并致力于保護和維護這些人權，促進人權意識。

PI4ULS3V4857 能夠將 1.2V 至 1.8V 主機側電壓轉換為 1.8V 或 3.0V 的存儲卡電壓信號，反之亦然。這允許 SD 3.0 存儲卡與最新的低壓微處理器、SoC 和 ASIC 結合使用，其傳輸時間比其他數據存儲解決方案短得多。

FN1220027	Diodes晶振	SaRonix-eCera™ FN	12.288MHz	±25ppm	-40°C ~ 85°C
FN1430053	Diodes晶振	SaRonix-eCera™ FN	14.318MHz	±25ppm	-40°C ~ 85°C
FN2000115	Diodes晶振	SaRonix-eCera™ FN	20MHz	±25ppm	-40°C ~ 85°C
FN2500156	Diodes晶振	SaRonix-eCera™ FN	25MHz	±20ppm	-20°C ~ 70°C
FN2500171	Diodes晶振	SaRonix-eCera™ FN	25MHz	±25ppm	-40°C ~ 85°C
FN2500175	Diodes晶振	SaRonix-eCera™ FN	25MHz	±25ppm	-40°C ~ 85°C
FN2500177	Diodes晶振	SaRonix-eCera™ FN	25.002MHz	±25ppm	-40°C ~ 85°C
FN2700077	Diodes晶振	SaRonix-eCera™ FN	27MHz	±20ppm	-20°C ~ 70°C
FN3000041	Diodes晶振	SaRonix-eCera™ FN	30MHz	±25ppm	-40°C ~ 85°C
FN3200033	Diodes晶振	SaRonix-eCera™ FN	32MHz	±25ppm	-40°C ~ 85°C
FN3270028	Diodes晶振	SaRonix-eCera™ FN	32.768MHz	±25ppm	-40°C ~ 85°C
FN3600001	Diodes晶振	SaRonix-eCera™ FN	36MHz	±25ppm	-40°C ~ 85°C
FN3600019	Diodes晶振	SaRonix-eCera™ FN	36MHz	±25ppm	-40°C ~ 85°C
FN3710001	Diodes晶振	SaRonix-eCera™ FN	37.125MHz	±25ppm	-40°C ~ 85°C
FN3840008	Diodes晶振	SaRonix-eCera™ FN	38.4MHz	±20ppm	-20°C ~ 70°C
FN4000162	Diodes晶振	SaRonix-eCera™ FN	40MHz	±20ppm	-20°C ~ 70°C
FN4800077	Diodes晶振	SaRonix-eCera™ FN	48MHz	±25ppm	-40°C ~ 85°C
FN5000118	Diodes晶振	SaRonix-eCera™ FN	50MHz	±25ppm	-40°C ~ 85°C
FN6660075	Diodes晶振	SaRonix-eCera™ FN	66.67MHz	±25ppm	-40°C ~ 85°C
FN6660076	Diodes晶振	SaRonix-eCera™ FN	66.66MHz	±25ppm	-40°C ~ 85°C
FNA620051	Diodes晶振	SaRonix-eCera™ FN	106.25MHz	±50ppm	-20°C ~ 70°C

PI4ULS3V4857 的時鐘頻率達到 208MHz，能夠支持目前最快的 SD 卡接口 - SD 3.0 SDR104。該 6 位器件也適用于 SDR50 (100MHz)、SDR25 (50MHz)、DDR50 (50MHz) 和 SDR12 (25MHz) 操作。向后兼容性意味著它也可以處理傳統的 SD 2.0 高速 (50MHz) 和默認速度(25MHz) 模式。

FND330009	Diodes晶振	SaRonix-eCera™ FN	133.33MHz	±50ppm	-20°C ~ 70°C
SXF000007	Diodes晶振	SaRonix-eCera™ SX	150MHz	±50ppm	-20°C ~ 70°C
SXF550007	Diodes晶振	SaRonix-eCera™ SX	155.52MHz	±50ppm	-20°C ~ 70°C
SXF620007	Diodes晶振	SaRonix-eCera™ SX	156.25MHz	±50ppm	-20°C ~ 70°C
UM2600002	Diodes晶振	SaRonix-eCera™ UM	26MHz	±50ppm	-30°C ~ 85°C
NX3261E0125.000000	Diodes晶振	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
FN6660077	Diodes晶振	SaRonix-eCera™ FN	66.666MHz	±25ppm	-20°C ~ 70°C
FN6660079	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±50ppm	-20°C ~ 70°C
FN6660080	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±50ppm	-40°C ~ 85°C
FN7000003	Diodes晶振	SaRonix-eCera™ FN	70MHz	±50ppm	-40°C ~ 85°C
FN7200004	Diodes晶振	SaRonix-eCera™ FN	72MHz	±50ppm	-20°C ~ 70°C
FN7400001	Diodes晶振	SaRonix-eCera™ FN	74MHz	±50ppm	-20°C ~ 70°C
FN7420006	Diodes晶振	SaRonix-eCera™ FN	74.25MHz	±50ppm	-20°C ~ 70°C
FN7500038	Diodes晶振	SaRonix-eCera™ FN	75MHz	±50ppm	-20°C ~ 70°C
FN7500039	Diodes晶振	SaRonix-eCera™ FN	75MHz	±25ppm	-20°C ~ 70°C
FN7500045	Diodes晶振	SaRonix-eCera™ FN	75MHz	±50ppm	-40°C ~ 85°C
FN7500046	Diodes晶振	SaRonix-eCera™ FN	75MHz	±25ppm	-20°C ~ 70°C
FN7770021	Diodes晶振	SaRonix-eCera™ FN	77.76MHz	±50ppm	-40°C ~ 85°C
FN7770022	Diodes晶振	SaRonix-eCera™ FN	77.76MHz	±50ppm	-40°C ~ 85°C
FN7770023	Diodes晶振	SaRonix-eCera™ FN	77.76MHz	±50ppm	-20°C ~ 70°C
FN7770024	Diodes晶振	SaRonix-eCera™ FN	77.76MHz	±25ppm	-20°C ~ 70°C
FN7770025	Diodes晶振	SaRonix-eCera™ FN	77.76MHz	±50ppm	-20°C ~ 70°C

通過消除對外部電平轉換器的需要，節省了大量的電路板空間。內置的100mA LDO 穩壓器和電磁干擾 (EMI) 濾波器有助于進一步減少系統組件數量并限制物料清單成本。8kV 靜電放電 (ESD) 保護也已集成到轉換器設備中，從而確保長期運行。
PI4ULS3V4857采用小尺寸、20球WLCSP封裝，現在可提供3000片.

FN7770026	Diodes晶振	SaRonix-eCera™ FN	77.76MHz	±25ppm	-20°C ~ 70°C
NX5061E0156.250000	Diodes晶振	SaRonix-eCera™ NX	156.25MHz	±50ppm	-40°C ~ 85°C
YNWMAX153	Diodes晶振	SaRonix-eCera™ YN	153.6MHz	±35ppm	-40°C ~ 85°C
NX3232E0156.250000	Diodes晶振	SaRonix-eCera™ NX	156.25MHz	±50ppm	-40°C ~ 85°C
SXF000005	Diodes晶振	SaRonix-eCera™ SX	150MHz	±50ppm	-40°C ~ 85°C
SXF550009	Diodes晶振	SaRonix-eCera™ SX	155.52MHz	±50ppm	-40°C ~ 85°C
SXF620003	Diodes晶振	SaRonix-eCera™ SX	156.25MHz	±50ppm	-40°C ~ 85°C
FDC500016	Diodes晶振	SaRonix-eCera™ FD	125MHz	±20ppm	-20°C ~ 70°C
FDC500019	Diodes晶振	SaRonix-eCera™ FD	125MHz	±20ppm	-20°C ~ 70°C
UM2600001	Diodes晶振	SaRonix-eCera™ UM	26MHz	±20ppm	-30°C ~ 85°C
FRSONT077	Diodes晶振	SaRonix-eCera™ FR	77.76MHz	±50ppm	-40°C ~ 85°C
SXF550011	Diodes晶振	SaRonix-eCera™ SX	155.52MHz	±20ppm	-20°C ~ 70°C
FN6660081	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±25ppm	-40°C ~ 85°C
FN7410004	Diodes晶振	SaRonix-eCera™ FN	74.175MHz	±25ppm	-40°C ~ 85°C
FN7420007	Diodes晶振	SaRonix-eCera™ FN	74.25MHz	±25ppm	-40°C ~ 85°C
FN7770028	Diodes晶振	SaRonix-eCera™ FN	77.76MHz	±25ppm	-40°C ~ 85°C
FN7770029	Diodes晶振	SaRonix-eCera™ FN	77.76MHz	±20ppm	-20°C ~ 70°C
FN8000056	Diodes晶振	SaRonix-eCera™ FN	80MHz	±50ppm	-40°C ~ 85°C
FN8000059	Diodes晶振	SaRonix-eCera™ FN	80MHz	±50ppm	-20°C ~ 70°C
FN8330020	Diodes晶振	SaRonix-eCera™ FN	83.33MHz	±50ppm	-40°C ~ 85°C
FN8500004	Diodes晶振	SaRonix-eCera™ FN	85MHz	±50ppm	-20°C ~ 70°C
FN9000013	Diodes晶振	SaRonix-eCera™ FN	90MHz	±50ppm	-20°C ~ 70°C

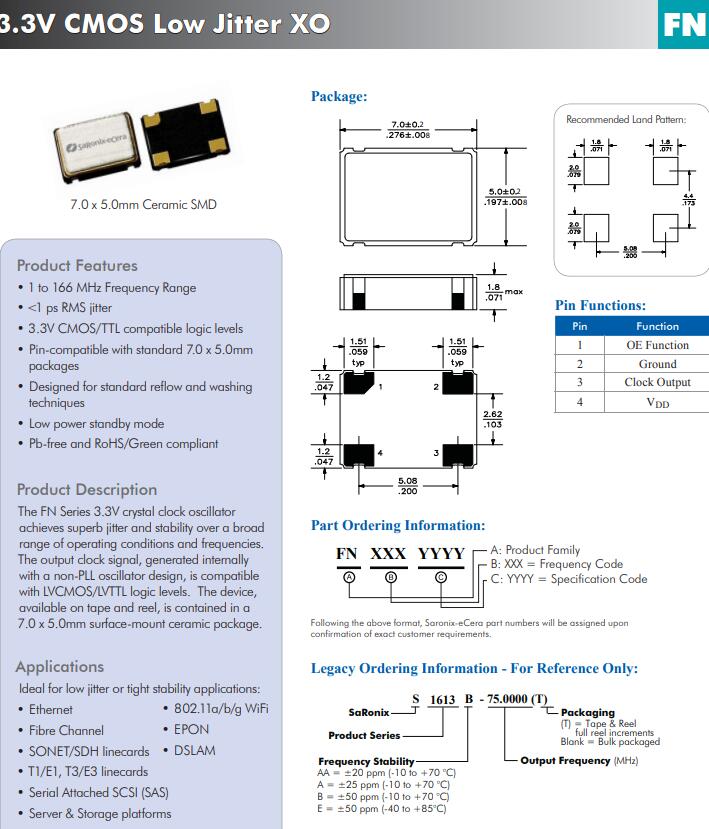

產品特性

1 ~ 166mhz頻率范圍
<1 ps RMS抖動

3.3V CMOS/TTL兼容邏輯電平

引腳兼容標準7.0 x 5.0mm包

用于標準回流和洗滌技術

低功耗待機模式

無鉛和RoHS/綠色環保

產品描述

FN系列3.3V晶體時鐘振蕩器實現卓越的抖動和穩定的廣泛操作條件和頻率的范圍。內部產生的輸出時鐘信號與非鎖相環振蕩器設計，是兼容的LVCMOS/LVTTL邏輯電平。的設備,可在磁帶和卷軸上，是包含在一個7.0 x 5.0mm表面貼裝陶瓷封裝。應用程序

適用于低抖動或緊密穩定的應用:

以太網

光纖通道

SONET / SDH linecards

T1/E1, T3/E3線卡

SAS (Serial Attached SCSI)

服務器和存儲平臺
