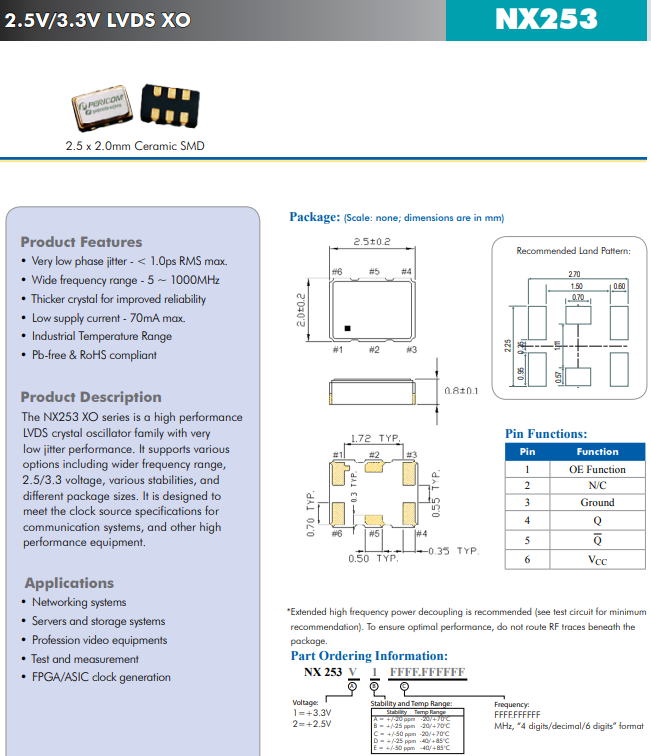

NX253系列具有極低抖動性能的高性能LVDS晶體振蕩器

來源：http://www.gsepg.com 作者：康比電子 2022年07月16
NX253 XO系列是具有極低抖動性能的高性能LVDS晶體振蕩器系列。它支持各種選項，包括更寬的頻率范圍、2.5/3.3 電壓、各種穩定性和不同的封裝尺寸。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
特征：
非常低的相位抖動 - <1.0ps RMS最大值。
寬頻率范圍 -5~1000MHz差分晶振
更厚的晶體以提高可靠性
低電源電流 - 最大 70mA。
工業溫度范圍
無鉛且符合RoHS標準
應用：網絡系統，服務器和存儲系統，專業視頻設備，測試和測量，F(xiàn)PGA/ASIC 時鐘生成
NX253系列具有極低抖動性能的高性能LVDS晶體振蕩器,NX2531B0026.000000,差分晶振,ECERA貼片晶振
NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm
NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm
NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm
NX7031D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm
NX7031D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm
NX7031D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm
WF7021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
WF7021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
WF7021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
WF9021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
WF9021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
WF9021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
KD3270040 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270040 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270040 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270046Z Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KD3270046Z Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KD3270046Z Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
JX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ JX 56MHz ±50ppm
JX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ JX 56MHz ±50ppm
JX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ JX 56MHz ±50ppm
KK3270050 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
KK3270050 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
KK3270050 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb
JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb


JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb
FRBST1061 Diodes Incorporated SaRonix-eCera™ FR 61.44MHz ±50ppm
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm
KM3270004 Diodes Incorporated SaRonix-eCera™ KM 32.768kHz ±25ppm
FK2500021 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
FN4000159 Diodes Incorporated SaRonix-eCera™ FN 40MHz ±50ppm
FK0800003 Diodes Incorporated SaRonix-eCera™ FK 8MHz ±50ppm
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm
FK2500022 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
FK2500022 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
FK5000013 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm
FK5000013 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm
FD2500050 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm
FD2500050 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm
FK1200011 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm

Product Parameters

ProductSeries NX2
Family XO
Output Logic LVDS
Supply Voltage (V) 3.3, 2.5
Freq Range (MHz) 5 to 1000
Jitter RMS (ps) <1
PkgType Ceramic Seam
Package Size (mm) 2.5x2.0x0.9
Pads 6
NX253系列具有極低抖動性能的高性能LVDS晶體振蕩器,NX2531B0026.000000,差分晶振,ECERA貼片晶振
產品參數：
產品系列 NX2 貼片晶振
家庭 XO
輸出邏輯 LVDS
電源電壓 3.3V, 2.5V
頻率范圍 5到1000MHz
抖動均方根 (ps) <1
包裝類型 陶瓷縫
包裝尺寸 2.5x2.0x0.9mm
墊 6腳
FK1200011 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm
FNSAS2075 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 75MHz ±50ppm
FD6250012 Diodes Incorporated SaRonix-eCera™ FD 62.5MHz ±50ppm
KN3270028 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
KD3270032 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KN3270031 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
KD3270042 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KN3270022 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
KD3270036 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KN3270032 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
KN3270033 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
KD3270034 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KX3211B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3211C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX3211E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX3211G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3213B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3213C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX3213G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3211H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KD3270043 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KN3270026 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KN3270034 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KD3270012 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KK3270040 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
NX253系列具有極低抖動性能的高性能LVDS晶體振蕩器,NX2531B0026.000000,差分晶振,ECERA貼片晶振
NX251   CMOS 3.32.5 5 到 250 <1 2.5x2.0x0.9 4 2.5mmx2.0mm CMOS 可編程 XO
NX252   LVPECL 3.32.5 5 到 1000 <1 2.5x2.0x0.9 6 2.5mmx2.0mm LVPECL 可編程 XO
NX253   LVDS 3.32.5 5 到 1000 <1 2.5x2.0x0.9 6 2.5mmx2.0mm LVDS 可編程 XO
NX254   HCSL 3.32.5 5 至 212.5 <1 2.5x2.0x0.9 6 2.5mmx2.0mm HCSL 可編程 XO
NX256   CML 3.32.5 5 到 1000 <1 2.5x2.0x0.9 6 2.5mmx2.0mm CML可編程XO
NX26SA   CML 3.32.5 5 到 1000 <1 2.5x2.0x0.9 6 2.5mmx2.0mm CML 2頻可編程XO
NX26SB   CML 3.32.5 5 到 1000 <1 2.5x2.0x0.9 6 2.5mmx2.0mm CML 四頻可編程XO

KK3270042 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
KK3270044 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
KN3270027 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
KD3270033 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
KN3270030 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
KD3270039 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
KN3270023 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
FNC500129 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm
KN3270036 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KN3270029 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KX2511B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2511C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2511E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2511H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2513C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2513E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2513H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2513B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KN3270025 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KX2513A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm
KD3270041 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
KN3270024 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
NX253系列具有極低抖動性能的高性能LVDS晶體振蕩器,NX2531B0026.000000,差分晶振,ECERA貼片晶振
DIODES百利通亞陶晶振所生產的石英晶振,貼片晶振,石英晶體振蕩器,壓電石英晶體元器件、壓電石英晶體、有源晶體廣泛應用于智能設備,汽車電子,無線通訊,網絡通信,精密儀器,GPS衛星,網絡控制器,全球GPS定位系統等領域.工程、銷售、倉儲和物流辦事處設在臺北,香港、曼徹斯特、上海、深圳、中國、韓國、慕尼黑、德國、以及世界各地的支持辦事處.
