更多>>Transko晶振集團新系列高穩定性溫補晶振型號尺寸詳情表
來源：http://www.gsepg.com 作者：kbdzkj 2018年06月16
Transko晶振集團是一家位于加利福尼亞州阿納海姆的通過ISO 9001認證的變頻控制設備解決方案供應商,專業生產石英晶振,貼片晶振,有源晶振,壓控晶振,濾波器等頻率元件.通過質量和經驗，自1992年以來，其他許多其他產品我們得到了援助.
讓我們與眾不同的是Transko Advantage –具有快速交付能力。能夠在72小時內提供產品，高度積極的銷售人員為您的頻率控制要求提供優異的定價和解決方案。通過結合杰出員工的知識和廣泛背景，能夠解決和定制您的特定項目或設計需求,Transko團隊導向的環境和高效的生產人員不斷讓我們的客戶滿意，并使我們能夠提供最好的支持。

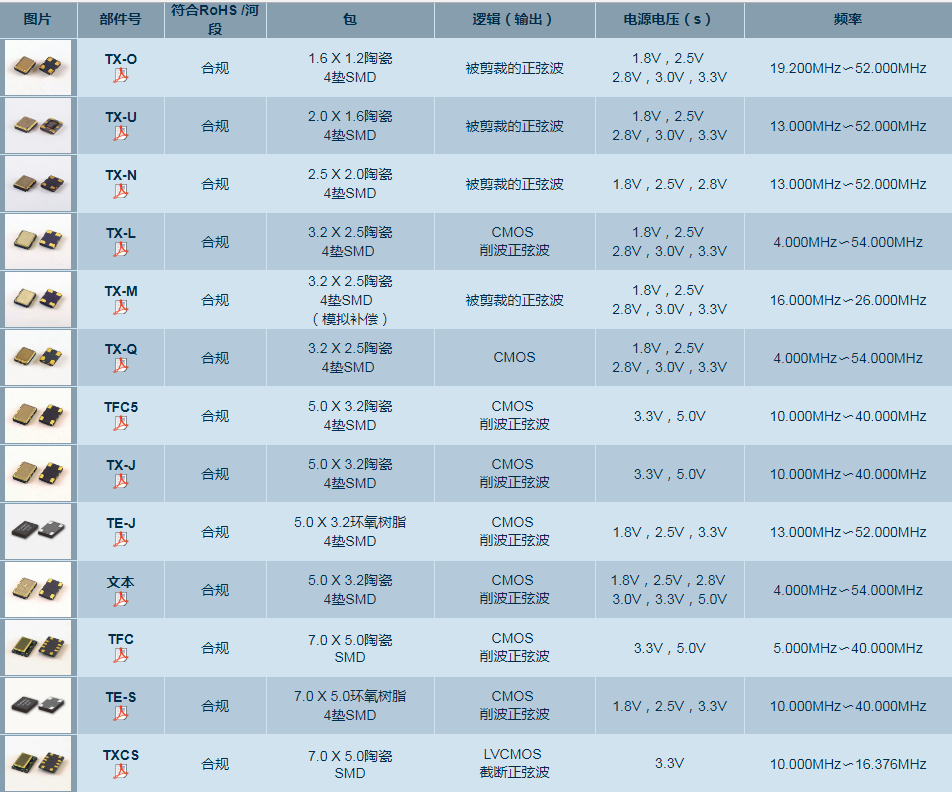

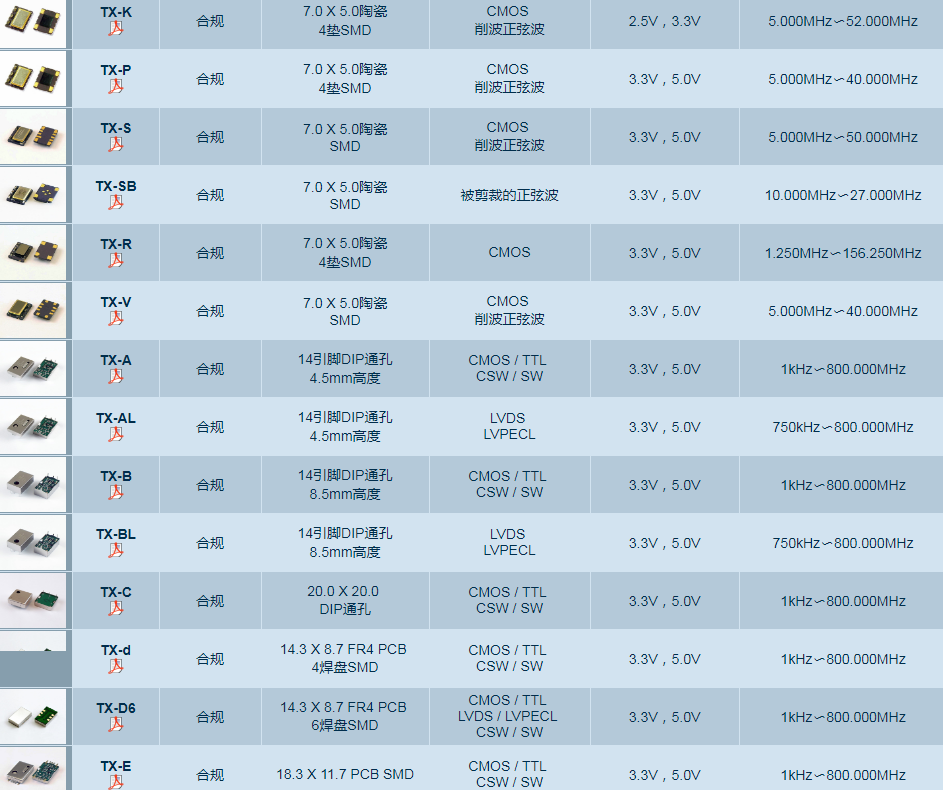

Transko宣布推出適用于基站，無線回程和核心網絡設備應用的新系列高穩定性TCXO晶振TX-P系列。提供CMOS和削波正弦波輸出，在-10°C至60°C的工作溫度范圍內具有±0.05ppm的頻率穩定性，在-10°C至70°C范圍內具有±0.1ppm的頻率穩定度，這些器件還具有可選的電壓調整范圍線性10％時為±5ppm。此外，由于TX-P系列在100Hz失調時可以達到-130dBc/Hz，而在26MHz CMOS輸出時可以達到-145dBc/Hz@1KHz失調，因此相位噪聲性能非常出色。成本比OCXO更合理
.png)
Transko crystal oscillator group is an iso 9001 certified solution supplier for frequency conversion control equipment located in Anaheim, California. it specializes in producing Shi Ying crystal oscillator, patch crystal oscillator, active crystal oscillator, voltage controlled crystal oscillator, filter and other frequency components. through quality and experience, we have received assistance for many other products since 1992.
What sets us apart is trans ko advantage – fast delivery capability. Able to provide products within 72 hours, highly active salespeople provide excellent pricing and solutions for your frequency control requirements. By combining the knowledge and extensive background of outstanding employees, you can solve and customize your specific project or design requirements. Trans ko's team-oriented environment and efficient production staff have continuously satisfied our customers and enabled us to provide the best support.
Trans ko announces new series of high stability tcxo tx - p series suitable for base station, wireless backhaul and core network equipment applications. Provides CMOS and clipped sine wave outputs with 0.05 ppm frequency stability in the operating temperature range of - 10 c to 60 c, 0.1 ppm frequency stability in the range of - 10 c to 70 c, and 5 ppm when the optional voltage adjustment range is 10 % linear. In addition, since the tx - p series can reach - 130 DBC / Hz at 100 Hz offset and -45 DBC/Hz@1 khz offset at 26 MHz CMOS output, the phase noise performance is excellent. The cost is more reasonable than ocxo
讓我們與眾不同的是Transko Advantage –具有快速交付能力。能夠在72小時內提供產品，高度積極的銷售人員為您的頻率控制要求提供優異的定價和解決方案。通過結合杰出員工的知識和廣泛背景，能夠解決和定制您的特定項目或設計需求,Transko團隊導向的環境和高效的生產人員不斷讓我們的客戶滿意，并使我們能夠提供最好的支持。
Transko宣布推出適用于基站，無線回程和核心網絡設備應用的新系列高穩定性TCXO晶振TX-P系列。提供CMOS和削波正弦波輸出，在-10°C至60°C的工作溫度范圍內具有±0.05ppm的頻率穩定性，在-10°C至70°C范圍內具有±0.1ppm的頻率穩定度，這些器件還具有可選的電壓調整范圍線性10％時為±5ppm。此外，由于TX-P系列在100Hz失調時可以達到-130dBc/Hz，而在26MHz CMOS輸出時可以達到-145dBc/Hz@1KHz失調，因此相位噪聲性能非常出色。成本比OCXO更合理
What sets us apart is trans ko advantage – fast delivery capability. Able to provide products within 72 hours, highly active salespeople provide excellent pricing and solutions for your frequency control requirements. By combining the knowledge and extensive background of outstanding employees, you can solve and customize your specific project or design requirements. Trans ko's team-oriented environment and efficient production staff have continuously satisfied our customers and enabled us to provide the best support.
Trans ko announces new series of high stability tcxo tx - p series suitable for base station, wireless backhaul and core network equipment applications. Provides CMOS and clipped sine wave outputs with 0.05 ppm frequency stability in the operating temperature range of - 10 c to 60 c, 0.1 ppm frequency stability in the range of - 10 c to 70 c, and 5 ppm when the optional voltage adjustment range is 10 % linear. In addition, since the tx - p series can reach - 130 DBC / Hz at 100 Hz offset and -45 DBC/Hz@1 khz offset at 26 MHz CMOS output, the phase noise performance is excellent. The cost is more reasonable than ocxo
